Features:
- Industrial‑grade 2.5 HP Pulse Width Modulation (PWM) motor
- Constant torque performance across the full speed range
- Variable speed control from 60 to 3,600 RPM
- Designed for demanding applications in wood, metal, plastics, and more

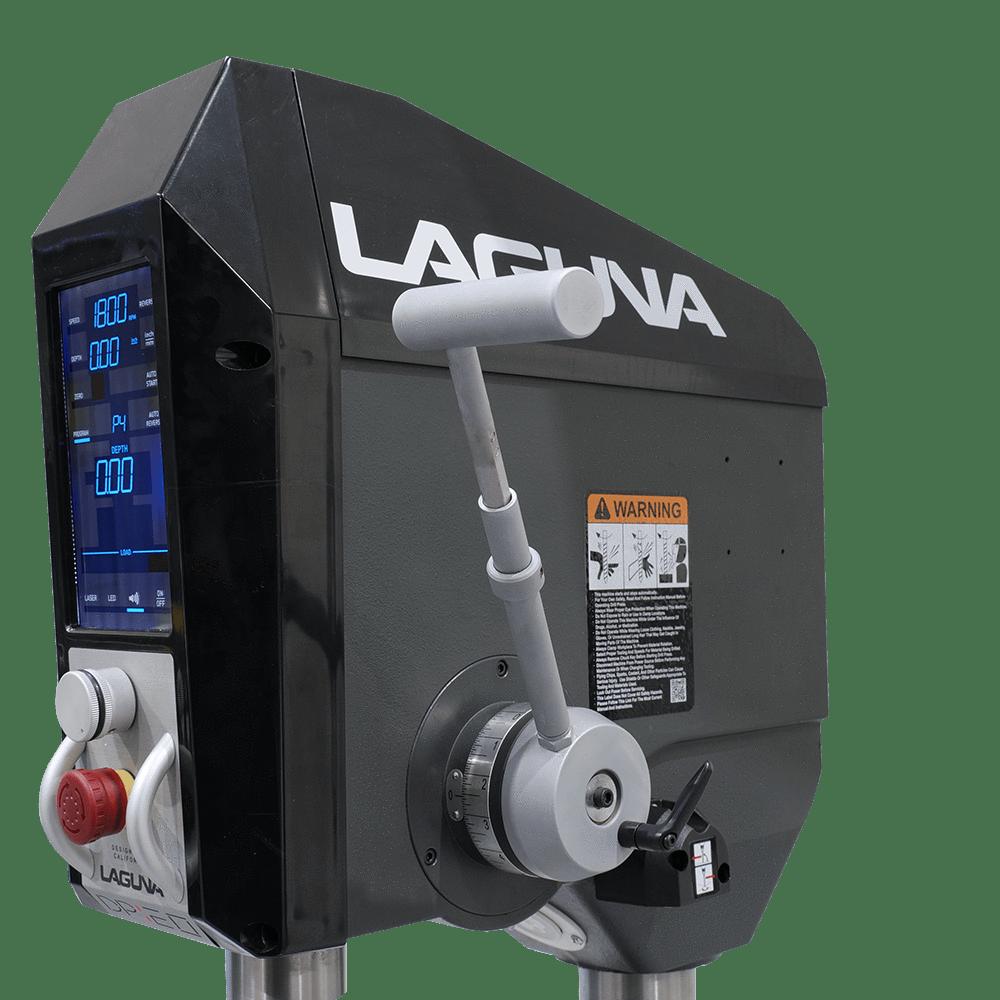

- State‑of‑the‑art Touch Screen Smart Panel
- Blue LCD digital readout for clear visibility
- Displays real‑time RPM, load, and quill depth
- Large 3‑3/4" x 6‑7/8" touch screen for easy operation
- Touch screen interface exceeds competitors in size and functionality
- Modern design paired with industrial performance
- Motor Type: DC Brushed with PWM
- Power Output: 2.5 HP
- Current: 15 Amp
- Voltage: 220V
- Frequency: 60 Hz
- Speed Range: 60–3,600 RPM, electronic variable, forward/reverse
- Power Transfer: Poly‑groove drive belt
- Machine Control: LCD Touch Screen Smart Panel
- Memory Settings: 5
- Swing: 20"
- Spindle Taper: MT2

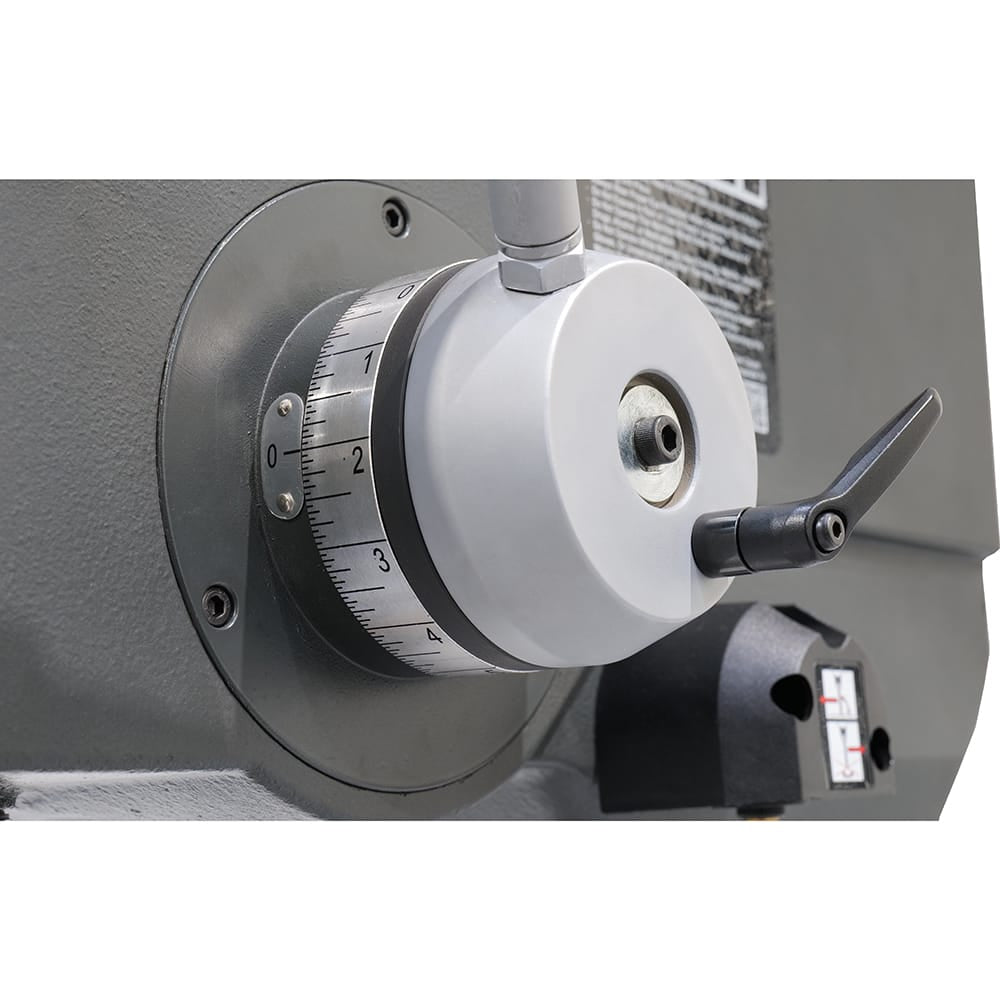

- Quill Travel: 6"
- Quill Diameter: 2.6"

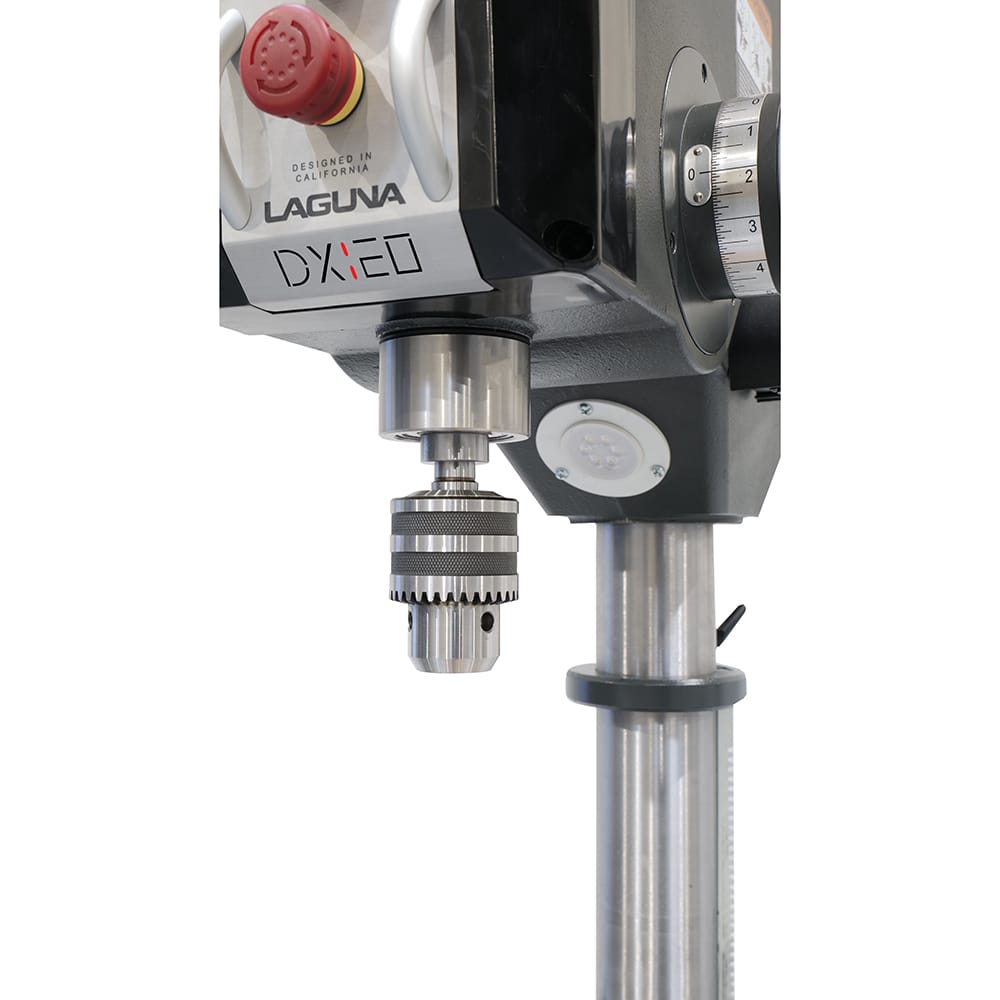

- Chuck Capacity: 5/64"–5/8"

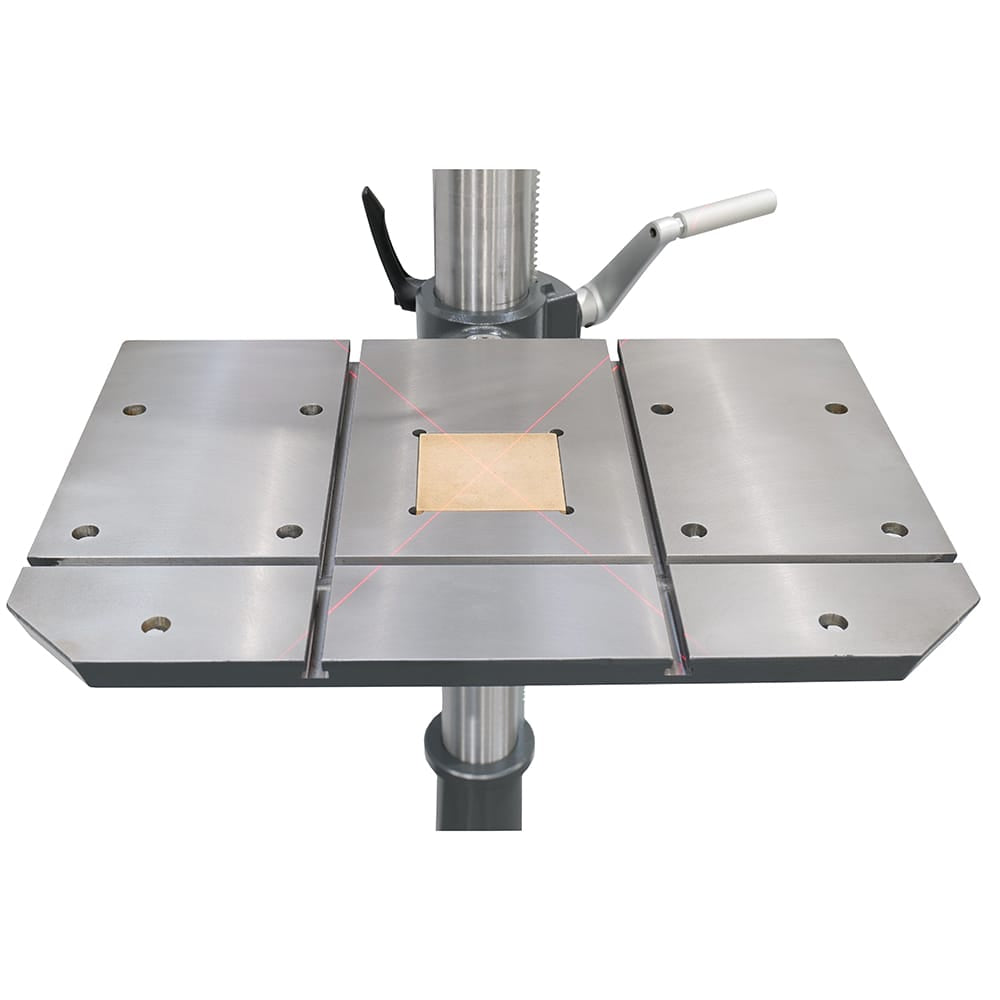

- Table Size: 15" x 22"
- Table Slots: 3 T‑slots
- Table Clamp Holes: 10
- Table Tilt: ±90°
- Table Swivel: 360° around column
- Spindle to Table Distance: 30" max
- Spindle to Base Distance: 49.5" max
- Column Diameter: 3.15"
- Base Size: 22.83" x 16.92"
- Net Weight: 304 lbs.
- Gross Weight: 326 lbs.
- Packing Dimensions: 72.5" x 28.5" x 20"

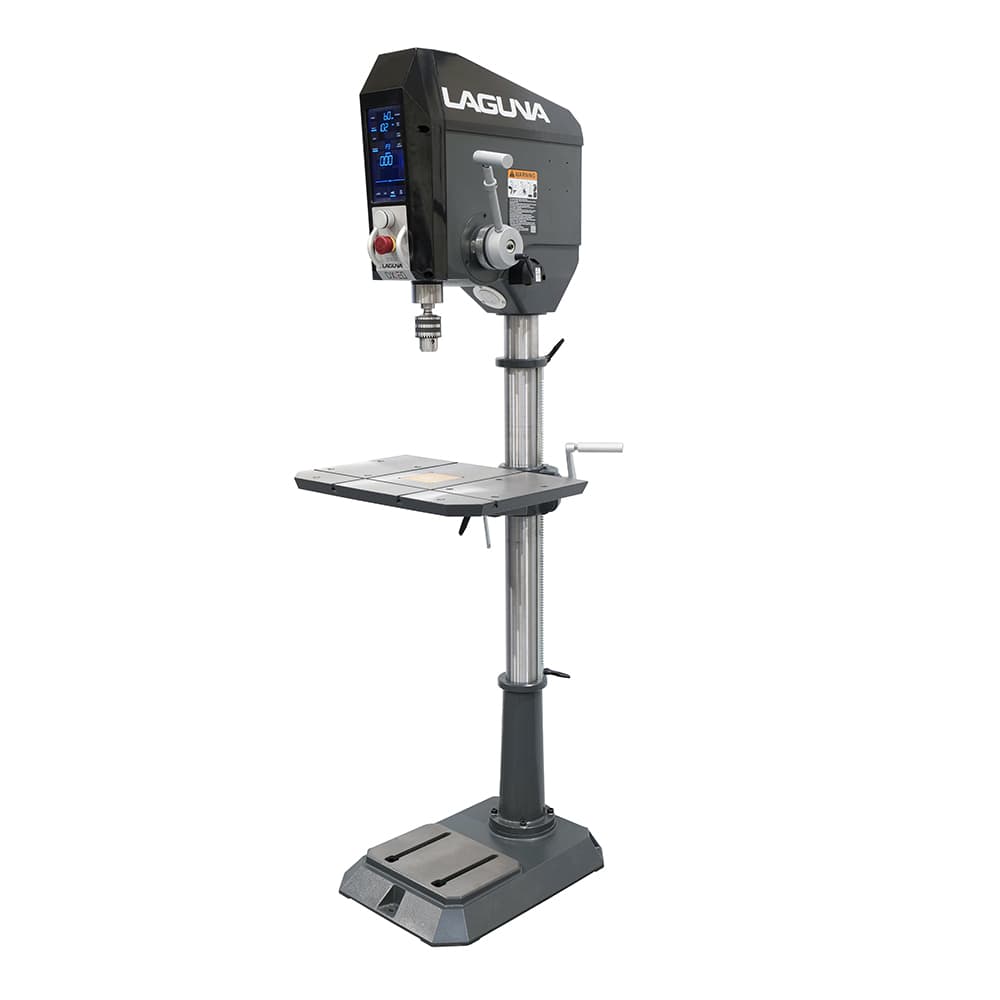

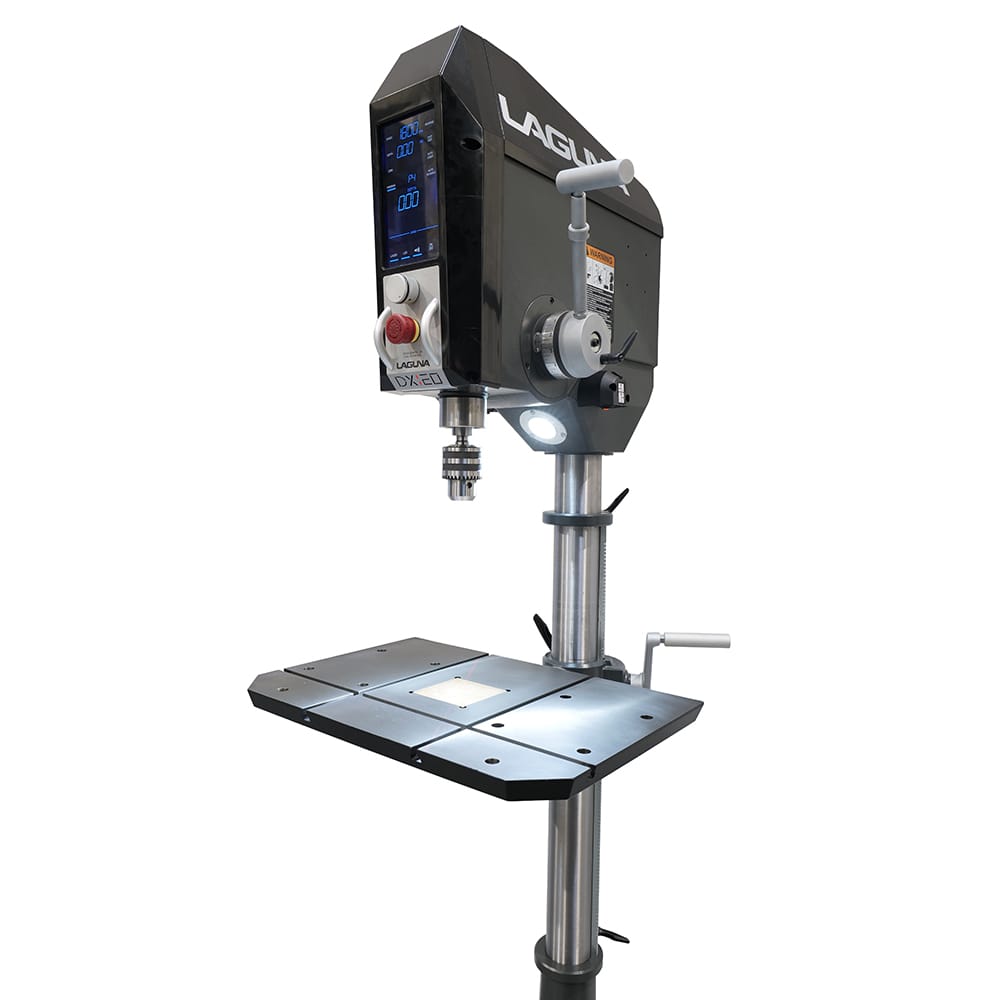

- DP20 Industrial Drill Press
- Integrated LCD Touch Screen Smart Panel
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
